What We Do

Manufacturing Capabilities

From single prototypes to high-volume production runs — precision-machined and fabricated in our Dubai facility.

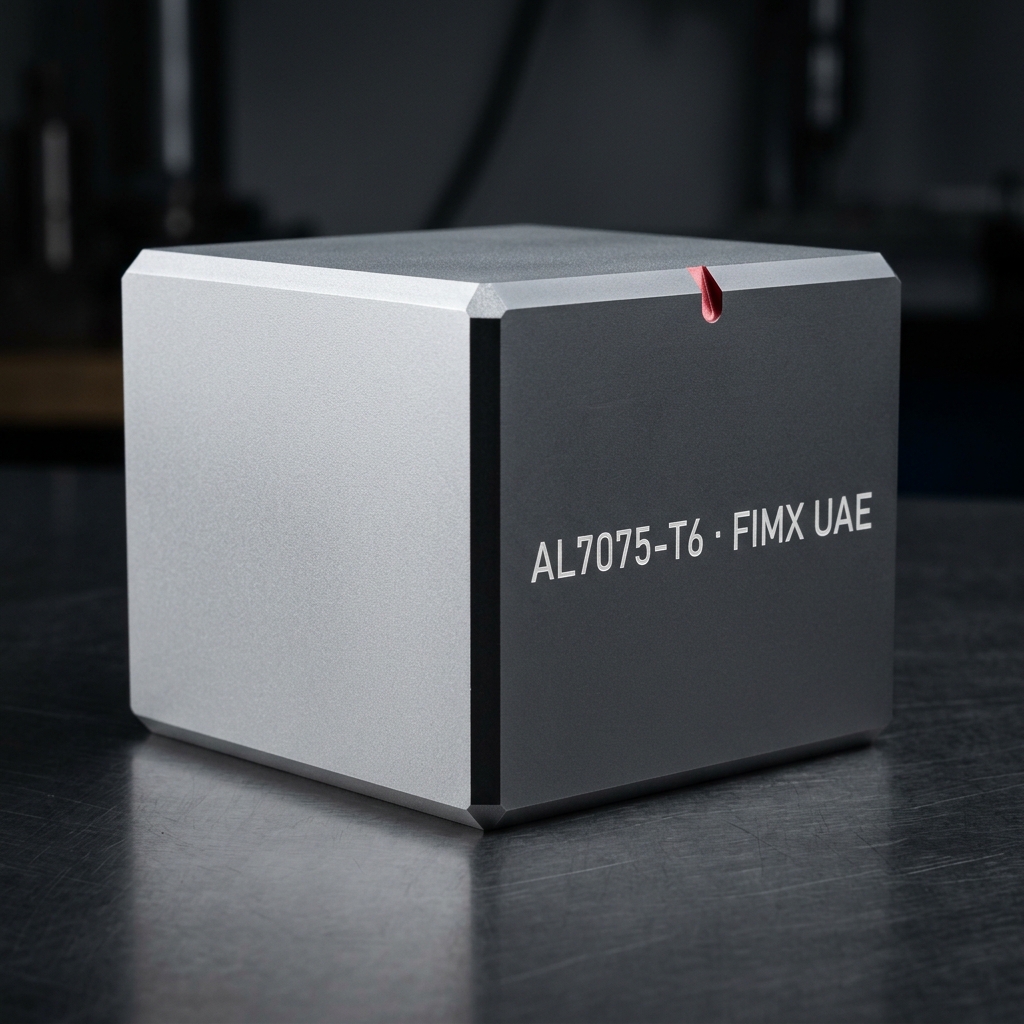

FIMX CNC machining capability shown through a precision aluminum product shot
All Capabilities

What We Build

Six manufacturing disciplines under one roof in Umm Rumool, Dubai.

CNC Milling (3/4/5-Axis)

Complex geometries, deep undercuts, and mission-critical components in a single setup.

±0.005mm tolerance5-Axis simultaneousTi, Al, Inconel, Steel

CNC Turning & Lathing

Precision shafts, propeller hubs, and rotational components up to 3m length.

±0.010mmØ800mm × 3000mmMarine-grade alloys

Steel Fabrication & Welding

AWS D1.1 certified MIG/TIG welding, structural steel, armored plating, and skid fabrication.

AWS D1.1 certifiedSkids up to 15THardox, S355, 316L

Tool & Die / Mold Making

Custom press tools, die sets, and injection molds for mass production tooling.

±0.005mm die insertsD2, H13, P20 steelsSPI A1 polish

Nut & Bolt Mass Production

High-volume fastener production from M6 to M120, ISO metric and UN thread classes.

M6 to M120Grade 8.8–12.9Custom coatings

Complex Parts & Assemblies

Multi-component assemblies, tight-tolerance exotic alloys, and classified program parts.

±0.005mmClassified handlingFull MTR traceability
Technical Specs

Full Capabilities Matrix

Filterable specification data for procurement and engineering review.

Verified Engineering Tolerances

FIMX Technical Specification & Capability Matrix

Zero Margin Error machine specifications and metallurgical limits for procurement review.

Defense & UAVs (EDGE / ADASI / NIMR)±0.005 mm (5 microns)

5-Axis Multi-Plane Tactical CNC

Machinable Alloys & Metals
Armored Steel, Titanium Ti-6Al-4V, Al 7075-T6
Max Working Dimensions
X: 1200mm, Y: 800mm, Z: 600mm
Surface Roughness (Ra)
MIL-A-8625 Type III Hard Anodize (Ra 0.2µm)
QA & Metrology Standard
100% CMM Metrology & Classified Protocol
CMM Inspected · 100% TraceableRequest CAD Feasibility
Aviation & Aerospace (Rolls Royce)±0.005 mm

AS9100 Simultaneous CNC Milling

Machinable Alloys & Metals
Inconel 718/625, Ti-6Al-4V, 15-5 PH Stainless
Max Working Dimensions
X: 1000mm, Y: 750mm, Z: 500mm
Surface Roughness (Ra)
Ra 0.4 µm (Optical Smooth Finish)
QA & Metrology Standard
Full MTR Traceability & AS9100 Protocol
CMM Inspected · 100% TraceableRequest CAD Feasibility
Marine & Propulsion (3m Capacity)±0.01 mm

Heavy CNC Lathing & Shaft Turning

Machinable Alloys & Metals
Stainless 316L, Duplex 2205, NAB Bronze
Max Working Dimensions
Ø 800mm × Length 3000mm
Surface Roughness (Ra)
Ra 0.8 µm (Dynamic Seal Finish)
QA & Metrology Standard
Ultrasonic NDT & Hydrostatic Testing
CMM Inspected · 100% TraceableRequest CAD Feasibility
Automotive (Dubai Baja Rally)±0.008 mm

Billet Motorsport & Suspension CNC

Machinable Alloys & Metals
Billet 7075-T6, Chromoly 4130, 8620 Steel
Max Working Dimensions
800mm × 600mm × 400mm
Surface Roughness (Ra)
Ra 0.4 µm with Hard Anodizing
QA & Metrology Standard
Stress FEA Verified & NDT Crack Check
CMM Inspected · 100% TraceableRequest CAD Feasibility
Mass Production Tooling & Dies±0.005 mm on Die Inserts

Custom Tool & Die / Mold Making

Machinable Alloys & Metals
Tool Steels D2, H13, P20, Carbide
Max Working Dimensions
1000mm × 800mm Die Sets
Surface Roughness (Ra)
SPI A1 Diamond Polish / EDM Spark
QA & Metrology Standard
HRC Hardness Testing & Die Tryout
CMM Inspected · 100% TraceableRequest CAD Feasibility
Heavy Industrial / High VolumeISO Metric / UN Class 2A, 2B, 3A, 3B

Nut & Bolt Fastener Mass Production

Machinable Alloys & Metals
High-Tensile 8.8, 10.9, 12.9, B7, B8M
Max Working Dimensions
M6 to M120 Diameter / Custom Pitches
Surface Roughness (Ra)
Zinc Flake, PTFE, Cadmium, Black Oxide
QA & Metrology Standard
Batch Proof Load & Optical Sorting
CMM Inspected · 100% TraceableRequest CAD Feasibility
Industrial & Structural FabricationAWS D1.1 / EN 1090 Fabrication Specs

Heavy Steel Fabrication & Welding

Machinable Alloys & Metals
Hardox 400/500, S355 Structural Steel
Max Working Dimensions
Skids up to 15 Tons / 12m Length
Surface Roughness (Ra)
Blasted SA 2.5, Marine Epoxy 350µm
QA & Metrology Standard
WPS/PQR Certified Welders & MPI/UT
CMM Inspected · 100% TraceableRequest CAD Feasibility
Calibrated CMM dimensional inspection certificates & MTRs accompany every shipment.Submit 2D/3D CAD for engineering assessment →
